Many builders order wheels based on diameter alone. That single mistake turns a dream build into an expensive delay — wrong fitment, wrong offset, wrong bolt pattern.

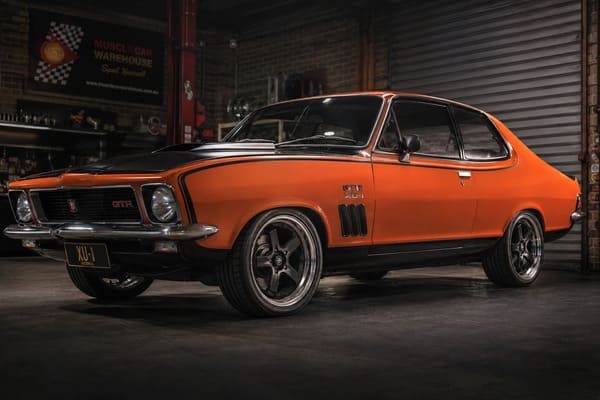

Yes, 17×9 wheels can fit on a Holden Torana LX GTR — but not as a simple bolt-on job. The Torana LX GTR left the factory on 14-inch steelies with roughly a 6-inch wide rim¹. Going to a 17×9 means a 3-inch jump in both diameter and width. Every one of those inches creates a new clearance problem somewhere.

I’ve spoken to enough modification shop owners to know there are four questions that determine whether a 17×9 fitment works on a classic car. Get all four right, and a 17×9 forged wheel on a Torana LX GTR looks absolutely stunning. Get one wrong, and you’re looking at weeks of delays and real money lost. I’ll walk through each one below.

What Does the 9 Mean in 17×9 Wheels?

You order a beautiful set of 17×9 wheels. They arrive. You put them on the car. They stick out 18mm past the fender lip on both sides. That’s not a style choice — that’s a return shipment.

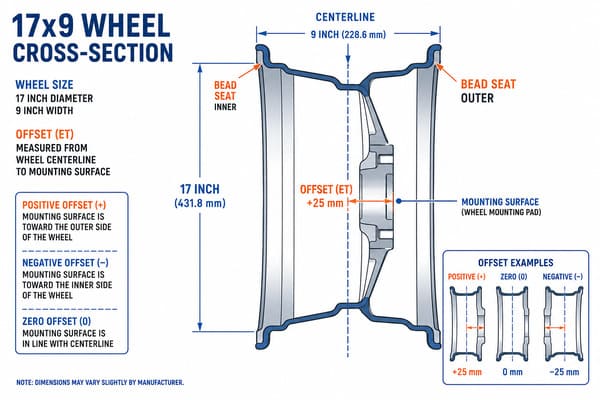

The \"9\" in 17×9 refers to the wheel width in inches, measured bead seat to bead seat. On a 9-inch wide wheel, the correct tire size is typically 255/40R17 or 265/40R17². But width alone means nothing without knowing the offset — the number that determines where the wheel sits relative to the hub face.

I once worked with a shop owner in Adelaide who ordered a set of 17×9 wheels for his Torana build without checking the offset. The wheels were beautiful. They stuck out 18mm past the fender lip on both sides. He had to reorder with a corrected offset. That mistake cost him 6 weeks and real money.

Understanding Offset for a Torana LX GTR

Offset is the distance in millimeters between the wheel’s mounting face and its centerline. A positive offset pushes the wheel inward toward the car. A negative offset pushes it outward toward the fender.

For a Torana LX GTR rear axle, most experienced builders target an offset in a specific range. The table below shows what happens at different offset values:

Width and offset work together. A 9-inch wide wheel at +10mm offset sits very differently from a 9-inch wide wheel at +30mm offset. At Tree Wheels, every custom forged wheel order includes a consultation on offset before production begins. We produce 3D models for customer approval before a single piece of aluminum is machined. That step exists precisely to prevent the Adelaide situation from happening to our customers.

What Is the Stud Pattern on a Holden Torana?

You’ve done everything right — the right size, the right offset. Then the wheels arrive and they won’t bolt on. The holes don’t line up. That is the stud pattern problem, and it happens more often than it should.

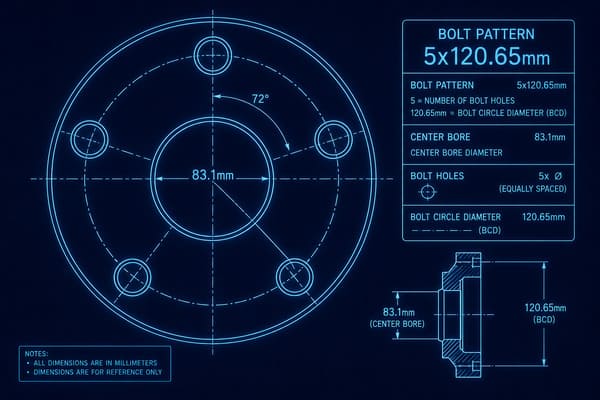

The Holden Torana LX runs a 5×120.65mm bolt pattern — the classic Holden/GM specification, sometimes written as 5×4.75 inches³. The center bore is 83.1mm⁴. These two numbers must match your wheel exactly. If either number is wrong, the wheel will not fit correctly or safely.

I always tell builders: write those two numbers down before you do anything else. The most common error I see is someone ordering wheels drilled to 5×114.3 — the modern Holden specification — instead of the correct 5×120.65. Those two patterns look similar on paper. They are not interchangeable.

Bolt Pattern vs. Center Bore — Why Both Matter

Many people know to check the bolt pattern. Fewer people check the center bore. Here is why both matter:

The bolt pattern carries the load. The center bore centers the wheel on the hub. If the center bore is too small, the wheel won’t go on at all. If it’s slightly too large, the wheel can be hub-centric with an adapter ring — but that requires the right ring to be sourced and fitted correctly.

There is one more thing worth saying. Many Torana LX GTRs on the road today are 50-year-old cars that have changed hands multiple times. Some have been re-drilled by previous owners. Before placing any wheel order, measure the bolt circle on the actual car. Do not rely on what the previous owner told you, and do not rely on what a parts catalog says. Measure it yourself.

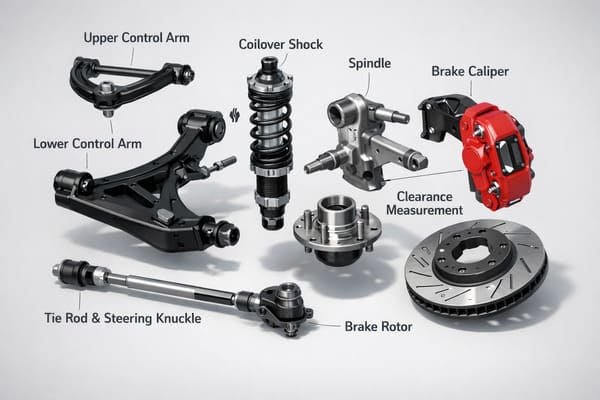

What Suspension and Brake Upgrades Do You Need for 17×9 Wheels on a Torana LX GTR?

A customer once asked me why his new 17-inch wheels wouldn’t clear the front brake calipers on his GTR. The answer was 4 millimeters. His calipers had a 32mm protrusion past the hub face. His wheels had 28mm of caliper clearance. The wheel physically could not go on the car.

Running 17×9 wheels on a Torana LX GTR requires checking brake caliper clearance and addressing the increase in unsprung weight. The Torana LX GTR came with front discs from the factory⁵, which helps — but caliper clearance on a 17-inch wheel still needs to be confirmed. A minimum of 35mm spoke clearance is the safe standard.

Beyond brake clearance, there is the question of unsprung weight. A larger wheel adds rotational mass at the outer edge of the wheel assembly. That mass is unsprung — meaning it moves with the suspension rather than being supported by it. More unsprung weight makes the suspension work harder over bumps and through corners⁶.

Brake Clearance and Suspension — What to Check and What to Change

The good news is this: a quality forged 17×9 wheel typically weighs between 8.5kg and 10kg. A cast wheel of the same size weighs roughly 11kg to 13kg. That 2 to 3kg weight saving per corner partially cancels out the unsprung weight increase from going to a larger diameter. This is one of the real, practical reasons serious builders choose forged wheels over cast — not just for the look, but for the handling outcome. At Tree Wheels, our one-piece forged 17×9 wheels are designed with this weight target in mind, because we understand that fitment is not just about whether the wheel goes on the car. It is about how the car behaves once it moves.

Do You Need Fender Modifications to Run 17×9 Wheels on a Torana LX GTR?

You get the wheels on. The car looks incredible sitting still. Then you drive it around the block and hear a grinding sound on every bump. That sound is your tire touching your fender liner, and it means the fitment work is not finished.

For most Torana LX GTR builds running 17×9 wheels, fender modifications are necessary — particularly at the rear. The rear wheel arch opening on the Torana LX body is approximately 270mm wide⁷. A 255/40R17 tire on a 9-inch wheel has a section width of around 263mm⁸. That leaves roughly 7mm of clearance per side before contact — and that assumes perfect alignment and zero suspension travel.

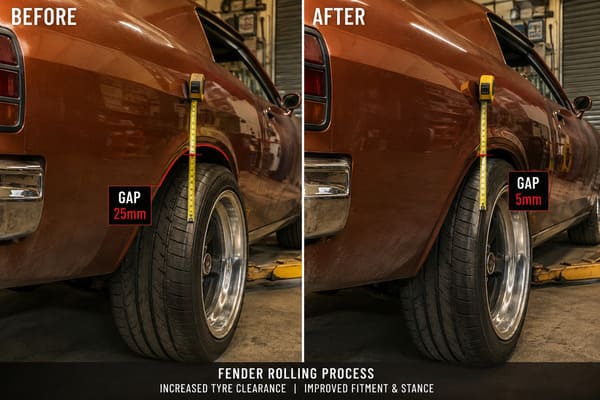

In practice, 7mm is not enough. Suspension compresses under load. Tires flex under cornering. Alignment is never perfect. Most builders roll the rear guards by at least 15mm to create safe, real-world clearance⁹. Some go further and fit aftermarket guards to achieve a more aggressive stance.

Front vs. Rear Fender Challenges — They Are Not the Same Problem

The front and rear present different challenges, and they need to be treated separately:

The front fitment issue is different from the rear. It is not about arch width — it is about steering lock. On full lock, the front tire can contact the inner guard or the strut housing. Most Torana builders running 17×9 up front will limit steering lock slightly and run an offset between +20 and +30mm to keep the tire away from the strut. A test fit at full steering lock, before alignment is set, is not optional. It is step one. No wheel order from Tree Wheels goes to a classic car fitment project without us asking the customer to confirm they have completed this step — or that they plan to before the wheels arrive.

Conclusion

A 17×9 wheel can look and perform brilliantly on a Torana LX GTR. Get the offset, bolt pattern, brake clearance, and fender clearance right — and the result is worth every step.

Tree Wheels produces high-end custom forged wheels with full fitment consultation, 3D modeling, and ISO9001, DOT, and TÜV certification¹⁰ — built for builds like this one.
