Most Impala owners get the numbers right but still end up with a fitment problem. The chart is only half the story — the platform engineering behind it is what actually keeps you out of trouble.

The Chevy Impala uses a 5x115mm bolt pattern across most modern generations. The 11th gen (2014–2020) runs a center bore of 70.3mm, with OEM wheel sizes ranging from 18" to 20" and a recommended offset window of +40mm to +52mm. Always confirm width and offset together before ordering.

There is one detail about the Impala that most fitment guides completely skip. The early Impalas — pre-2000 — were body-on-frame, rear-wheel-drive vehicles. The later Impalas — 2000 through 2020 — switched to a front-wheel-drive unibody platform. This platform change did not just change the numbers. It changed the logic behind the numbers. If you understand that logic, the fitment chart stops being a list of rules you have to memorize and starts making sense on its own.

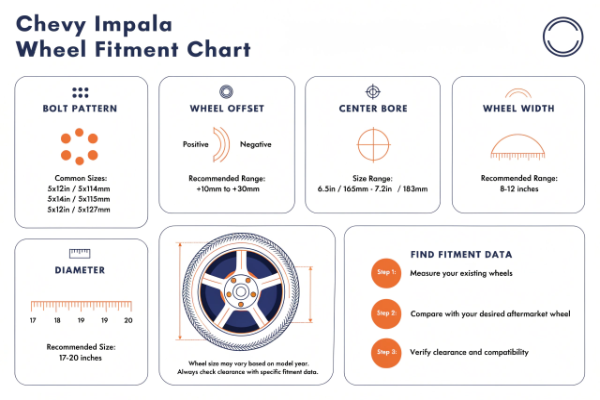

What Are the Key Fitment Specs You Need to Know for a Chevy Impala?

Most buyers learn the five fitment specs and think they are done. But the specs do not work in isolation — and the interactions between them are exactly where real fitment problems happen.

For the Chevy Impala, the five core fitment specs are: bolt pattern (5x115mm), center bore (70.3mm for 11th gen), offset (typically +40mm to +52mm), wheel width, and wheel diameter. These specs must be evaluated together — not one at a time — to avoid fitment issues.

The interaction that gets overlooked most often is offset and width together. At TreeWheels, when a customer sends us their specs, we always check width and offset as a pair — never separately. Here is why this matters: a +40mm offset on an 8-inch wide wheel behaves completely differently from a +40mm offset on a 9.5-inch wide wheel. The wider wheel pushes the outer edge of the tire significantly further out, even though the offset number is identical. For a full-size sedan like the Impala — a car whose wheel wells were not built for aggressive fitment — this difference is not small.

Why the FWD Platform Makes Offset More Critical

The switch to front-wheel drive on the 2000–2020 Impala made offset more important than it was on the older RWD generations. On a FWD platform, the CV axle runs directly through the wheel hub. If the offset is too low, the wheel pushes outward and places stress on the CV joint. If the offset is too high, the wheel tucks inward and can rub against the inner fender under load or during turns. The OEM offset window is not arbitrary — it was set to keep the wheel in a position that protects the drivetrain and allows full steering travel without contact.

The table above shows why treating each spec as a single number is not enough. Every spec interacts with at least one other spec. Width and offset together define your actual track width change. Center bore and bolt pattern together determine whether the wheel sits true on the hub. Understanding these interactions is what separates a good fitment from a problematic one.

What Is the Correct Wheel Size for Each Chevy Impala Model Year?

The Impala has gone through major platform and size changes across its generations. Using the wrong generation’s specs is one of the most common ordering mistakes we see from customers.

The 8th–9th gen Impala (2000–2013) runs 5x115mm with 16"–18" wheels. The 10th gen (2006–2013 Police/Fleet) shares the same bolt pattern. The 11th gen (2014–2020) supports 18"–20" OEM fitment, center bore 70.3mm, offset +40mm to +52mm. Earlier RWD generations use different specs entirely.

One point worth making clearly: GM’s own engineers already validated 20-inch wheels on the 11th gen Impala. The factory offered 20" wheels on higher trim levels. So when a customer asks whether a 2016 Impala can handle 20s, the answer is already proven by the OEM. The real question is not whether the car can handle the size — it is whether the wheel can handle the car.

Generation-by-Generation Fitment Reference

The Impala is a heavy vehicle. The 11th gen curbs at roughly 3,600 to 3,900 lbs depending on trim. Many aftermarket wheels — especially cast options at larger diameters — are not load-rated for a vehicle this heavy. This is the first thing we check at TreeWheels when a customer wants to upsize on a heavy sedan. The load rating conversation almost never appears in Impala fitment articles, but it is one of the most important conversations to have.

Forged wheels carry a real structural advantage on a vehicle this heavy. The forging process produces a denser grain structure than casting does. This means we can build a wheel that is lighter than a cast equivalent while still meeting the load requirements of a 3,800 lb car. For the Impala specifically, where load rating is a genuine concern at larger diameters, this structural difference is not a marketing point — it is a practical one.

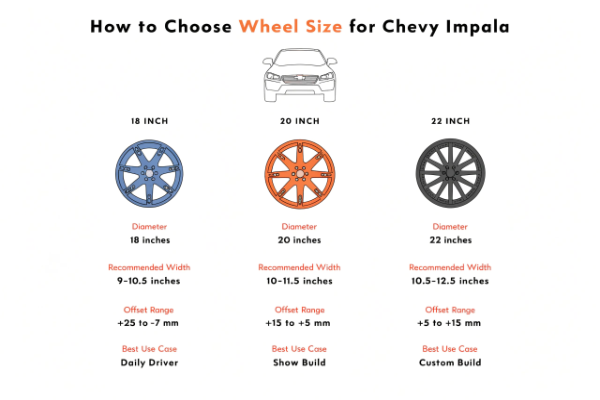

How Do You Choose the Right Wheel Size for Your Chevy Impala?

Most fitment guides treat wheel size selection as a style decision with a few safety notes attached. That framing gets it backwards. Start with how you use the car, not how you want it to look.

For daily-driven Impalas, stay within the OEM diameter range and prioritize ride comfort. For show builds, 22" is achievable but requires careful offset selection and a structurally strong wheel. For any Impala, width and offset define the driving experience more than diameter does.

The Impala is a genuinely multi-purpose platform. Some owners drive it daily. Some build it as a show car. Some use it in police or fleet roles. The correct wheel size is completely different in each of these cases. Obsessing over diameter — "I want 22s" — is the most common mistake we see. Diameter is actually the least important decision. Width and offset are what determine how the car feels and handles day to day.

Matching Wheel Size to Your Use Case

The FWD Impala also limits certain setups that work on RWD platforms. True staggered fitment — running a wider wheel on the rear than the front — does not apply to a FWD car the same way it does to a RWD one. On the Impala, if you want a wider stance, you achieve it through offset adjustment and width, not through staggering front and rear sizes.

One more point on upsizing: every inch you add in diameter removes sidewall from the tire. Less sidewall means less cushion between the rim and the road. On a car like the Impala — a full-size sedan that most owners use on real streets — going too large in diameter trades ride comfort for appearance. The sweet spot for most Impala builds is 20 inches with a width between 8 and 8.5 inches and an offset that sits in the middle of the OEM range. That combination gives you a strong visual upgrade without compromising what makes the car pleasant to drive.

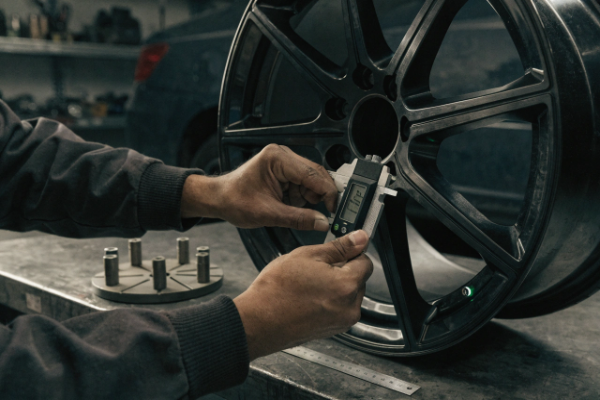

How Do You Measure Chevy Impala Wheel Fitment Accurately?

The most common fitment mistake does not come from ordering the wrong size. It comes from measuring the wrong reference point in the first place.

To measure Chevy Impala wheel fitment accurately, physically measure the wheels currently on the car — do not rely on published specs alone. Measure bolt pattern, center bore, offset, and width directly from the existing wheel. This is especially important if the car has been previously modified.

Here is the problem with looking up the spec sheet and placing an order: the car in front of you may not match the spec sheet. Previous owners modify vehicles. Dealers sell modified cars. If a customer looks up "2015 Impala bolt pattern," finds 5x115mm, and the car is already running aftermarket wheels with a different offset, the new order is based on wrong assumptions. We recommend physically measuring the current setup every time — not just for modified cars, but for any used vehicle where the history is not fully known.

A Step-by-Step Measurement Approach

The second point that most measurement guides skip is hub bore measurement. Measuring the hole diameter correctly is not enough. The wheel needs to sit flush against the hub face — and aftermarket hub adapters, surface irregularities, or previous modifications can prevent that flush contact even when the hole diameter is technically correct. When a wheel does not sit true against the hub face, the result is vibration at speed. It is not a safety crisis in most cases, but it is a quality problem that creates frustration and often leads to unnecessary returns or replacements.

At TreeWheels, we always ask customers to physically measure their existing setup before we confirm an order. It takes five extra minutes. It eliminates the most common source of fitment complaints we receive. Published specs are a starting point — your actual car is the final reference.

Conclusion

The Chevy Impala fitment chart makes sense once you understand the platform behind it. Match your specs to your use case, measure the actual car, and choose a wheel built to handle the load. TreeWheels builds custom forged wheels engineered for heavy sedans like the Impala — quality and fit, guaranteed.
